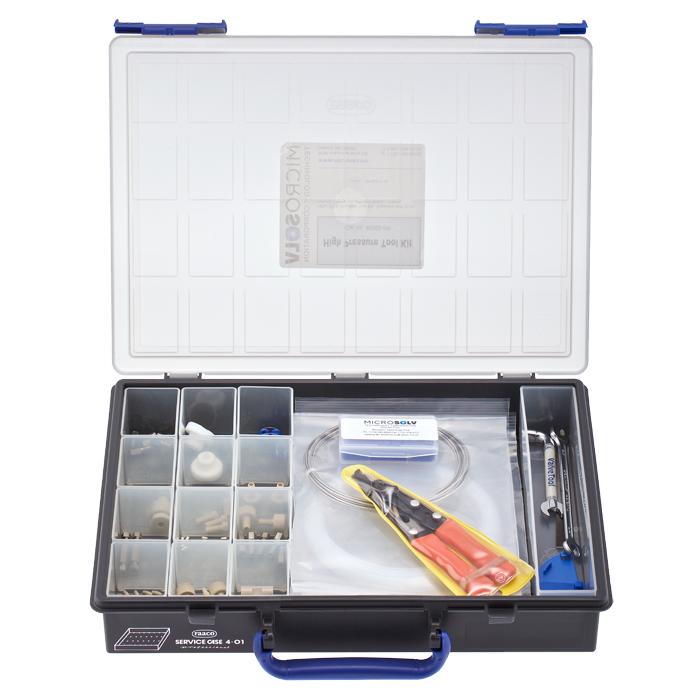

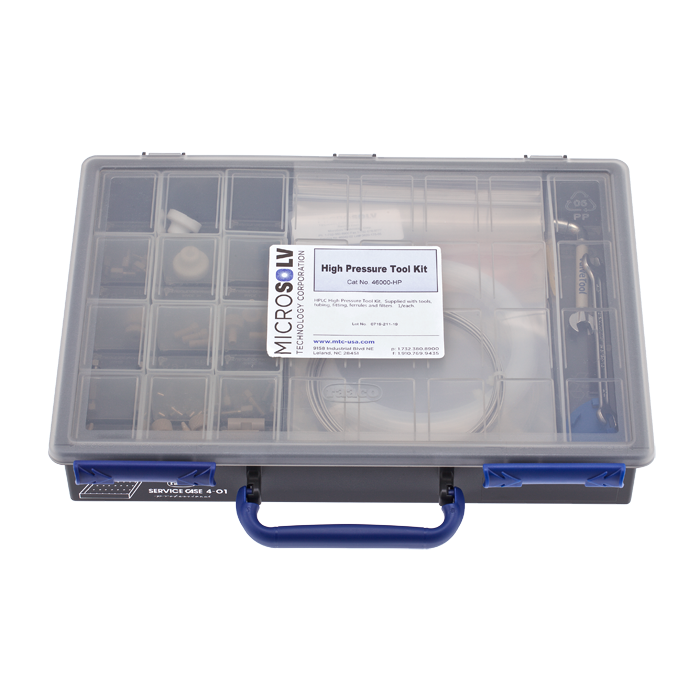

Tool Kit for HPLC. High Pressure. Includes Tools, Tubing, Fittings, Ferrules, Filters and box. ARE-Applied Research brand. 1 EA.
Additional Info:
This convenient kit puts all the parts tools you need to keep an HPLC up and running. A must have for everyone that is responsible for maintenance of the instruments.
Includes:
(10) Ferrules, PEEK, Double. 1/16 inch - 47320-35
(10) Ferrules, SS, Single, 1/16 inch - 49590-F116
(6) Tubing Connector, One Piece, Finger Tight, 1/16 inch - 47320-05-005
(4) Tubing Connectors, Finger Tight, 10-32 Screw Thread - 47320-31
(4) Tubing Connectors, Hex Head, 10-32 Screw Thread - 47320-41
(5) Tubing Connectors, SS, Long Head, Rheodyne Type, 10-32 - 49590-06
(5) Tubing Connectors, SS, Extra Long, Rheodyne Type, 10-32 - 49590-03
(1) Inline Filter, PEEK complete. 2 um PEEK frit - 49681-020-005
(2) Solvent Filters, Last Drop, SS Element, 2 um - 58835-01-002
(1) Clean Cut Tubing Cutter for Low Pressure Tubing - 46040-02-005
(1) File to remove burrs from Tubing - 46200-01F-010
(2) Tubing Holders - 46600-01
(1) Tubing Holder, Knee, 180⁰ - 46552-180
(1) Tubing Holder, Knee, 90⁰ - 46552-90
(1) Tubing Plier for cutting metal tubing - 46050-01
(1) Valve Tool from MICROSOLV - 46090-V1
(1) Wrench, 1/4-inch x 5/16 inch - 46030-01
(5) meter PEEK tubing 0.18 mm ID, 1.6 mm OD - 47305-07
(5) meter PEEK tubing 0.25 mm ID, 1.6 mm OD - 47305-10
(5) meter PTFE tubing 1.6 mm ID, 3.2 mm OD - 49225-65
(5) meter Stainless Steel tubing 0.25 mm ID, 1.60 mm OD - 49410-COIL-5M
(5) meter Stainless Steel tubing 0.50 mm ID, 1.60 mm OD - 49420-COIL-5M
(2) Unions, PEEK, 10-32, 0.3 mm Bore, Body Only - 49302-03-010
(2) Unions, SS, 10-32, 0.5 mm Bore, Body Only - 49402-04-010
